Case study C · honest failure

The run that failed honestly.

solver run · check these numbers against their artifacts

This is what an engine that can't lie looks like when it's wrong.

What happened

A 1,063-generation deep run evolved brackets against the same preregistered envelope as case study A, driven by a fast in-loop proxy. The proxy's champion looked like the real prize: 0.817 kg — lighter than the conventional baseline — at a predicted safety factor of 1.586 proxy — advisory. Twelve candidates went to CalculiX certification.

Certification result
0 / 12 passed

Real torsion safety factors came back 0.97–1.28, all below the 1.5 bar. The champion certified at 0.898 kg and SF 1.082 CalculiX-certified. Nothing shipped.

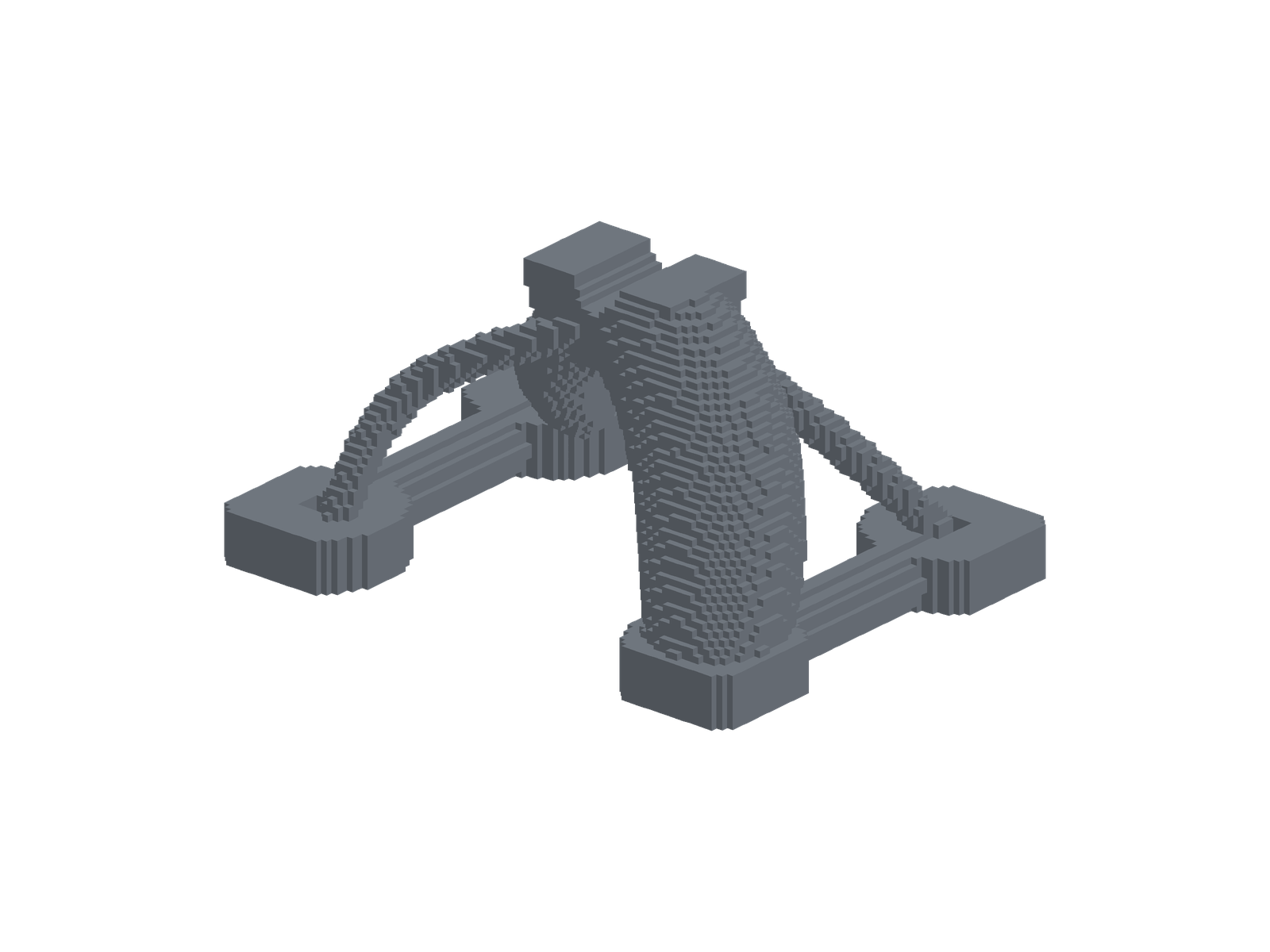

Failed candidate bracket g00296 Failed candidate bracket g00552 Failed candidate bracket g00835, the proxy champion
Three of the twelve failed candidates, rendered from their certification STLs. Right: the proxy champion. All twelve now live in the failure museum as evidence for future runs.
the champion's certification record certification.json ✕ FAIL
{
  "candidate_id": "bracket_g00835_709fb11c95094",
  "evidence_tier": "validated_sidecar_calculix_gmsh",
  "proxy_predicted": { "mass_kg": 0.817, "safety_factor": 1.586 },
  "mass_kg": 0.8980,
  "governing_case": "torsion",
  "governing_safety_factor": 1.0821,
  "passes": false,
  "failures": ["governing_safety_factor<1.5"]
}
ledger record edd966f3… · failure museum record · proxy prediction shown for contrast, advisory tier

Then the system turned on its own proxy

  1. The reality-residual oracle measured the proxy 40.1% optimistic

    Mean relative error on governing safety factor, paired proxy-vs-CalculiX across all candidates — 12 out of 12 over-promised. recompute-verified

  2. Reported accuracy was understated ~81×

    The surrogate trained on the proxy's labels reported an error of 0.0056. Its effective error against reality was 0.454. The accuracy gate had measured fidelity to labels, never fidelity to reality — so a new oracle now computes exactly that gap.

  3. Its confidence band put reality ~48σ outside

    Near-total confidence in a grossly wrong value. That surrogate's receipt can no longer read "gate passed" without these three numbers stamped next to it.

  4. All 12 failures became evidence

    Context-tagged records in the failure museum with revisit priors — steering future search away from dead basins as advisory evidence, never as a blacklist.

Why this is the point, not an embarrassment

The proxy proposed. The real solver disposed. The gates held, and the preregistered claim ceiling meant the mirage was never publishable in the first place. Most engineering-AI pipelines would have published the 0.817 kg bracket. PIE's architecture exists so it can't.

Current honest state of the bracket campaign: the only certified passing bracket remains g00095 (case study A) — heavier and surviving. The proxy is being recalibrated per-run instead of imported from old geometry. When a certified mass win lands, it will be announced with the same receipts as this failure.
